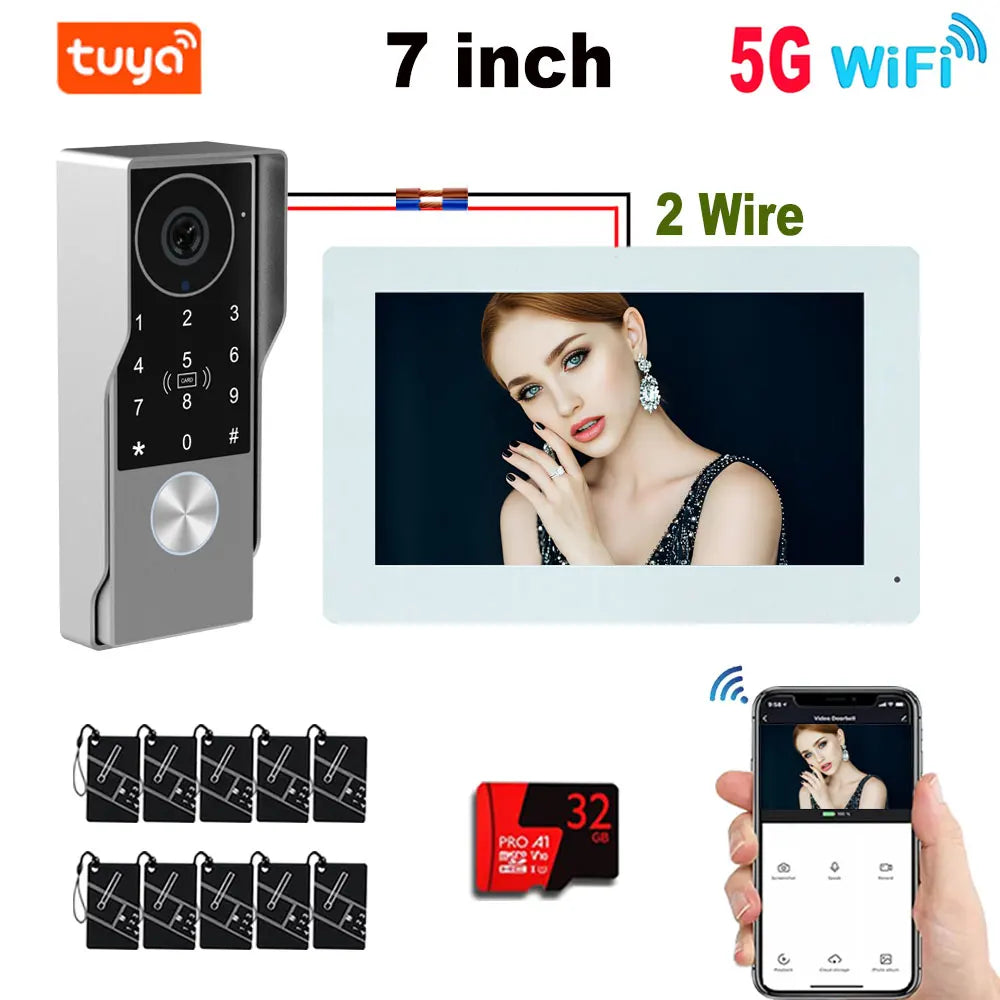

7/10inch Touch Screen 5G WiFi Video Doorbell 2-Wire TUYA Smart 1080P Camera Video Doorphone Intercom Password IC Card APP Unlock
7/10inch Touch Screen 5G WiFi Video Doorbell 2-Wire TUYA Smart 1080P Camera Video Doorphone Intercom Password IC Card APP Unlock
Couldn't load pickup availability
SPECIFICATIONS
10 inch IPS LCD: add 1pcs 32G Card
10 inch Monitor: 1024 x 600px IPS touch screen
APP: Main monitor connects to "Tuya" or "SmartLife" App
Access Control: Inductive Card
Answering Mode: Hands-free
Brand Name: HSmart HD
Camera: COLOR
Camera Sensor type: CMOS
Camera Support: 100pcs IC Card (13.56MHz)
Certification: CE
Choice: yes
Communication Interface: Wired
Connection Method: Wired
Display Screen Size(inch): 10
Display Screen Type: COLOR
Doorbell: Yes
HD Camera: Viewing angle:140°
High-concerned chemical: none
IP Camera Interface: Yes
Installation: Wall Mounting
Kit Configuration: One to One video doorphone
Material: Aluminum alloy panel+ABS
Model Number: IP10-W07
Origin: Mainland China
Outdoor Camera((4 IR LEDs)): 2Mega pixels ,Support night vision
Plug Type: EU Plug,US Plug,AU Plug,UK Plug
Power (W): 220v
Power supply: DC24V 1A external power supply
Remote Control Support: Iphone,Android Phone,Ipad,PC
Resolution: > 420 TV Line
Samrt Home Interface: No
Sensor Size(Inch): 1/3
Size: 7/10 inch IPS LCD video doorphone
Smart home platform: Tuya
Support: 2.4 GHz / 5G WiFi IEEE 8111 b/g/n
Technology: DIGITAL
Type: intercom system
Viewing Angle (°): 160
Viewing angle: Horizontal 130° Diagonal 165°
Waterproof: Yes
Waterproof Camera: Support Inductive Card Unlocking
Zone Input: None
semi_Choice: yes
Description
Password 4in1 Unlock HD Wifi Doorbell Video Intercom System For Home Doorphone Tuya Smart 1080P Touch Monitor Security Protect
2-Wire TUYA Smart Video intercom doorbell 1080P Waterproof Camera 5G Wifi 7/10inch Touch Screen Support Password Inductive Card

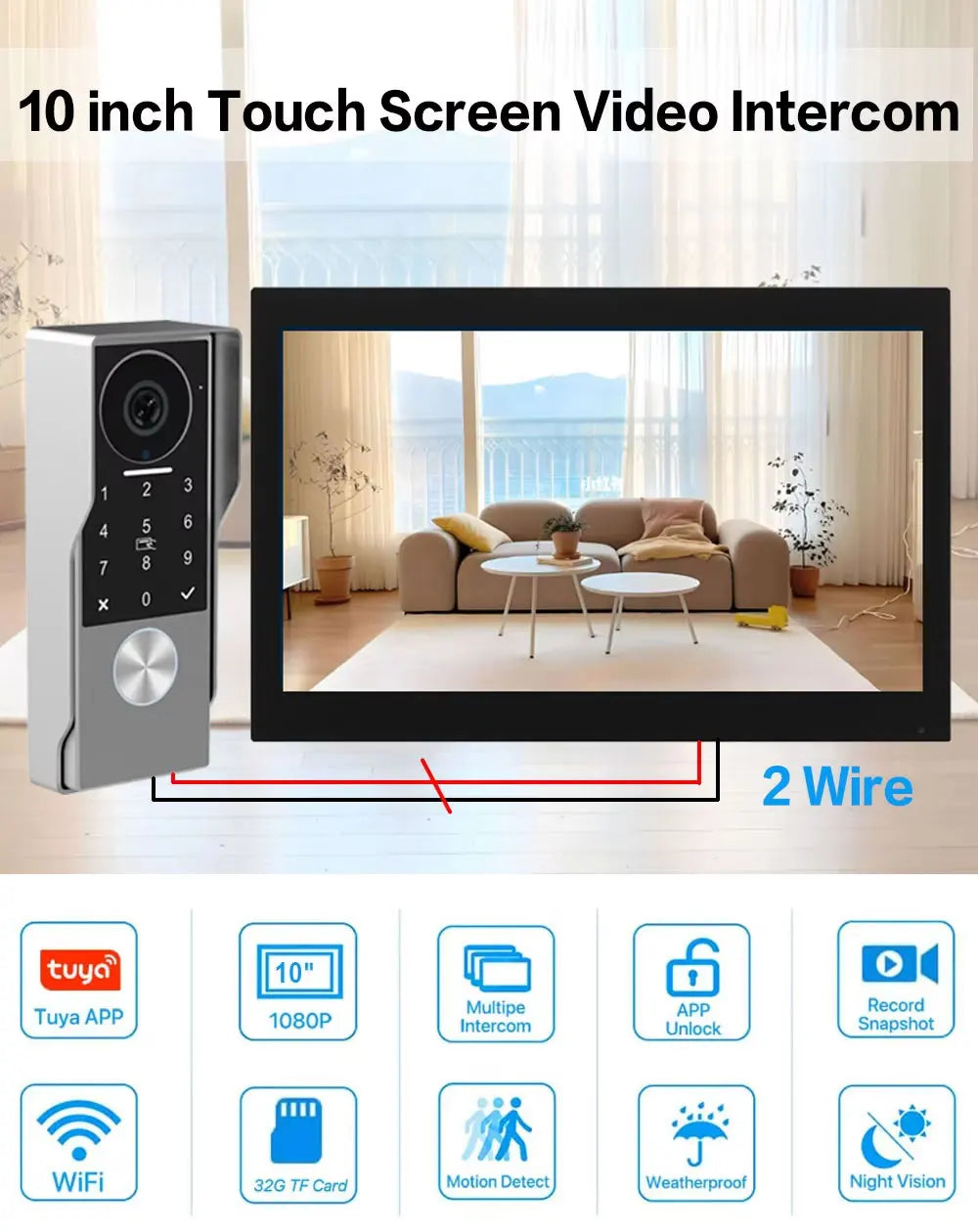

2 Wire Tuya App 10'' Touch Monitor Video Door Phone 1080P Camera IC Card PIN Unlock Support 5G Wifi Smart Video Intercom System for Home
Password 4in1 Unlock HD Wifi Doorbell Video Intercom System For Home Doorphone Tuya Smart 1080P Touch Monitor Security Protect
Features
Monitor
- 7” or 10.1” IPS touch screen with 1024 x 600 resolution
- Supports Class 10 Micro SD card, up to 512GB capacity
- Dual-band 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac
- Current consumption: 150mA, Power consumption: 3.5W
- 7inch monitor dimensions: 119 (h) x 188 (w) x 18.5 (d) mm
- 10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm
- The screen saver can always display the time and weather
- Take photo or video, twin controls for lock and gate, human detection, weather
- Monitor can talk to another monitor
- Automatic photo/video recording triggered by human detection or incoming calls
- Monitoring time lasts up to 30 minutes.
Intercom panel
- 2-megapixel CMOS color sensor
- Viewing angle: Horizontal ~130°/ Diagonal ~165°
- Current consumption: 220mA，Power consumption: 5.5W
- IR CUT no color deviation (4 IR LEDs)
- Wide Dynamic Range (WDR) camera for clear imaging in harsh light
- Camera distortion correction to prevent image stretching/bending
- Human detection function with adjustable motion zones
- RFID: 13.56MHz - 100 badges max.
- Operating temperature: -30°C / +70°C
- Dimensions: 149 (h) x 60 (w) x 35 (d) mm
IC Keyfob / Code / Phone APP / Monitor Unlock
Key Features
- 7 inch / 10inch touch screen and 2.0MP 1080P high-definition camera
- memory card supported. monitor maximum support external 128G SD memory card( SD optional)
- Coming with IR Sensor, Night Vision turn On/off Automatically.
- PIR Motion Detection. It will record image and videos automatically when someone presses the bell or Motion is detected.
- Waterproof design,work stable in rainy,cloudy,cold and snow day.
- Multiple Languages Optional, Egnlish, Russian, Chinese, German, French, Spanish, Turkish
Connect
- 1 Intercom panel and 2 monitors share one power supply
- 2 wires no polarity to conect intercom panel and monitors
- Connect up to 24 ONVIF cameras within the same LAN
APP
- Main monitor connects to "Tuya" or "SmartLife" App
- Supports up to 20 App users, enabling remote 2-way talk, photo/video capture,
real-time monitoring, lock/gate control, and cloud storage
- Automatic photo/video recording triggered by human detection or incoming calls
- Search "Tuya" or "SmartLife" from APP store or Google Play
- Quick download by scanning the QR code in the monitor's menu
Smart Motion Detection:
Doorbell camera has smart motion detection, receive real-time alerts when anyone approaches so that you never miss a delivery or keep guests waiting.
Automatic recording and playback
1080P camera with 140º wide view angle, Visitors at the door can be seen clearly.Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card (32GB card is included, no subscription fee).
Rainproof and Night vision
Waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel, Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.
Clock & Date Mode
Not only can it protect your family, it is also a beautiful decoration.If you not operated the monitor for 1 minute and the time will not displayed at the monitor.This can better protect the screen life and extend the use time.
Language :
It supports English, Russian, French, Spanish, German,Arabic, and other languages.

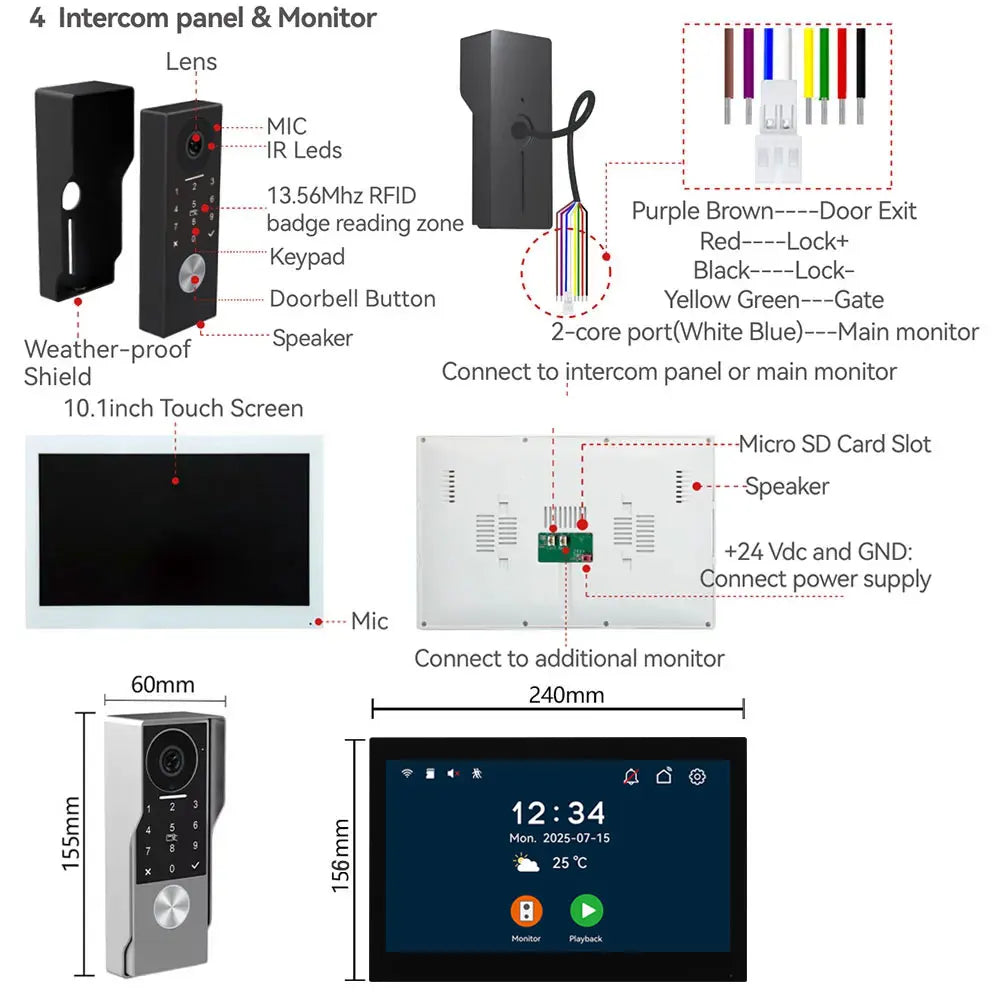

Intercom panel & Monitor
Packing List:Included in the package transfer cables (Approx. 80cm).
NOTE: When testing the doorbell, avoid testing the indoor unit and outdoor unit in the same space. (The microphone and speaker will produce harsh noise or whistling sound).
Compatible with Various Electronic Locks
This apartment video intercom can be connected to various electric locks (electromagnetic locks, electric locks, electric bolt locks) to provide convenience for your life.（Note:Locks and Lock's power need to be purchased separately）
About Wireless Connetion:
Please note the wifi video intercom system not mean it's don't need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired Connect.·The monitor support WiFi network(only connect with 2.4GHZ router band), easily setup video doorbell by connecting to wifi via the Tuya app.
·The indoor monitor and doorbell is Wired connection. You can use RVV2 wires to extend the monitor to doorbell, or monitor to monitor according to your need,mounting in your desired location.maximum distance can exceed 300ft.
Free tuya smart app, Monitor anytime and anywhere.
After downloading the Tuya app, you can connect the monitoring device to your smartphone in less than two minutes.
The operation is simple and safe. enjoy using phone to control the whole house of smart home appliances!
Wiring
In order to avoid the risk of interference and malfunction, do not pass the wire for your
video doorphone through the same sheath as the electrical wires.
Warning: Do not under any circumstances double wires to increase the wire size.
a. Connecting the videophone (monitor and intercom panel)
Wires to be used: 2x 0.75 mm² wires up to 100 m long or 2x 1.5 mm² wires up to 120 m
long.The wires must be in one piece.There must be no terminal strips or similar
connections to avoid altering the signal.
-Ensure that the wires are properly connected, following one of the wiring diagrams
depending on the desired configuration.
- Be sure to refer to the labelling on the back of the monitor and the back of the intercom panel.
When a second intercom panel is installed,the two intercom panels must be terminated
on the connecting cables, and the monitors wired together.
b. Connecting a gate motor drive Please note: the type of command (complete opening, partial opening for a pedestrian)that the motor drive will perform on request from the monitor cannot be selected from the monitor. The function triggered by the motor drive depends on the input on the motor drive electronic card to which the cables are routed.
-The gate output does not provide feedback as to whether the motor drive has taken the
command into account or whether it has executed the command correctly.
-The intercom provides a dry contact (without power) to be connected to the push button
control of the automatic opener.
-Connect the motor drive control directly to the Gate terminals on the intercom panel
(no polarity required).
c. Connecting an electric strike plate or lock Warning: The output of the intercom panel is designed to control a fail-secure electric strike plate or lock.
Important: The current controlling electric strike plate or lock must not exceed 1.1 A.
-Connect the electric lock or strike plate directly to the Lock+ and Lock- terminals.
