SPECIFICATIONS

Access Control: Password

Answering Mode: Hands-free

Brand Name: anjielosmart

Camera: COLOR

Camera Sensor type: CMOS

Certification: CE,FCC,RoHS

Communication Interface: WireLess

Connection Method: Wired

Display Screen Size(inch): 10

Display Screen Type: Color Touch Screen

Doorbell: Yes

High-concerned chemical: none

IP Camera Interface: Yes

Installation: Wall Mounting

Kit Configuration: One to Two video doorphone

Material: Metal/ABS

Origin: Mainland China

Plug Type: EU Plug,US Plug,AU Plug,UK Plug

Power (W): 220v

Resolution: 1080p

Samrt Home Interface: Yes

Sensor Size(Inch): 1/4

Smart home platform: Tuya

Technology: DIGITAL

Type: intercom system

Viewing Angle (°): 130

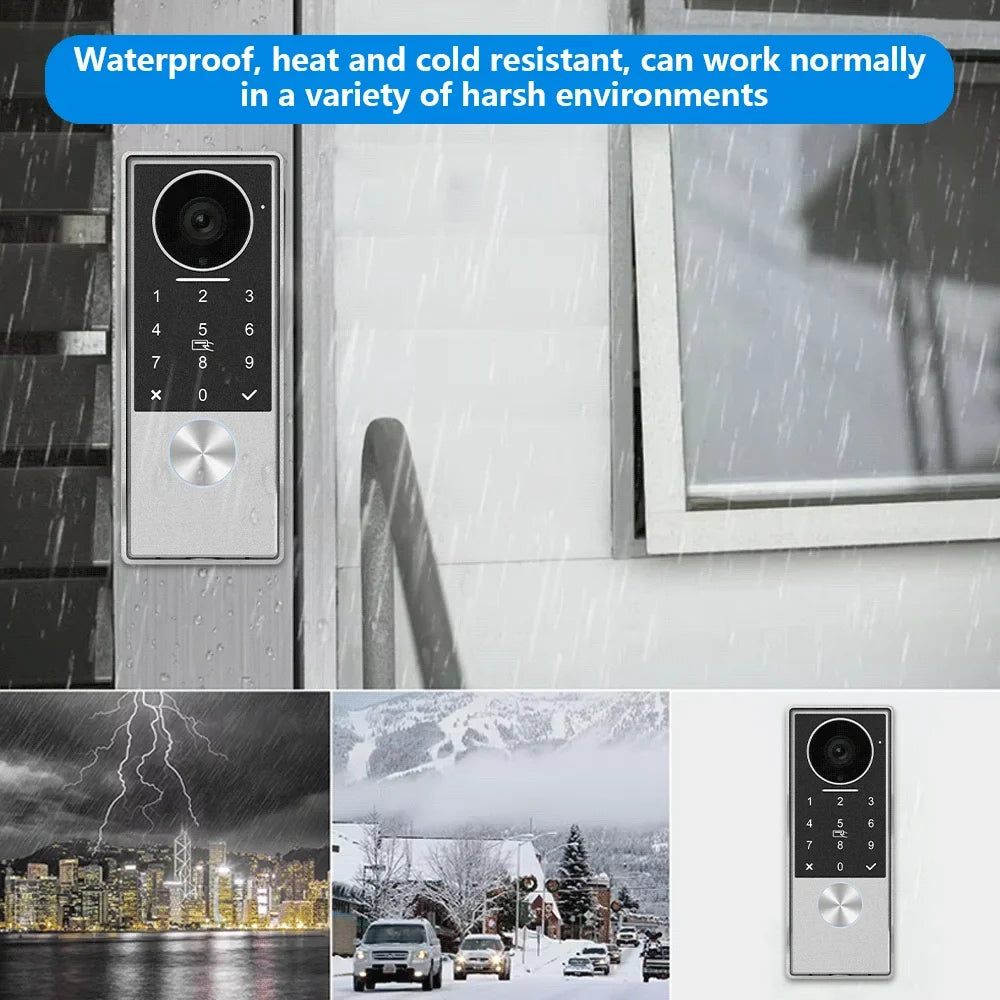

Waterproof: Yes

Zone Input: None

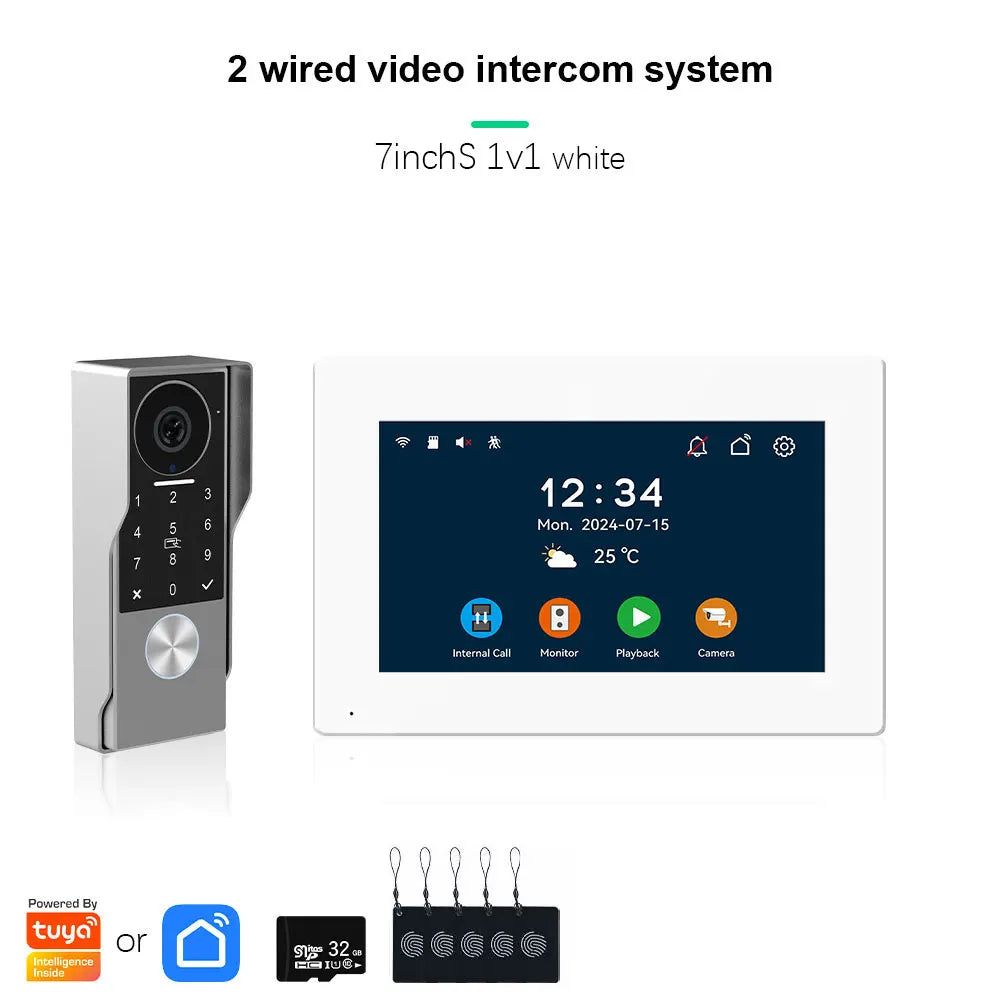

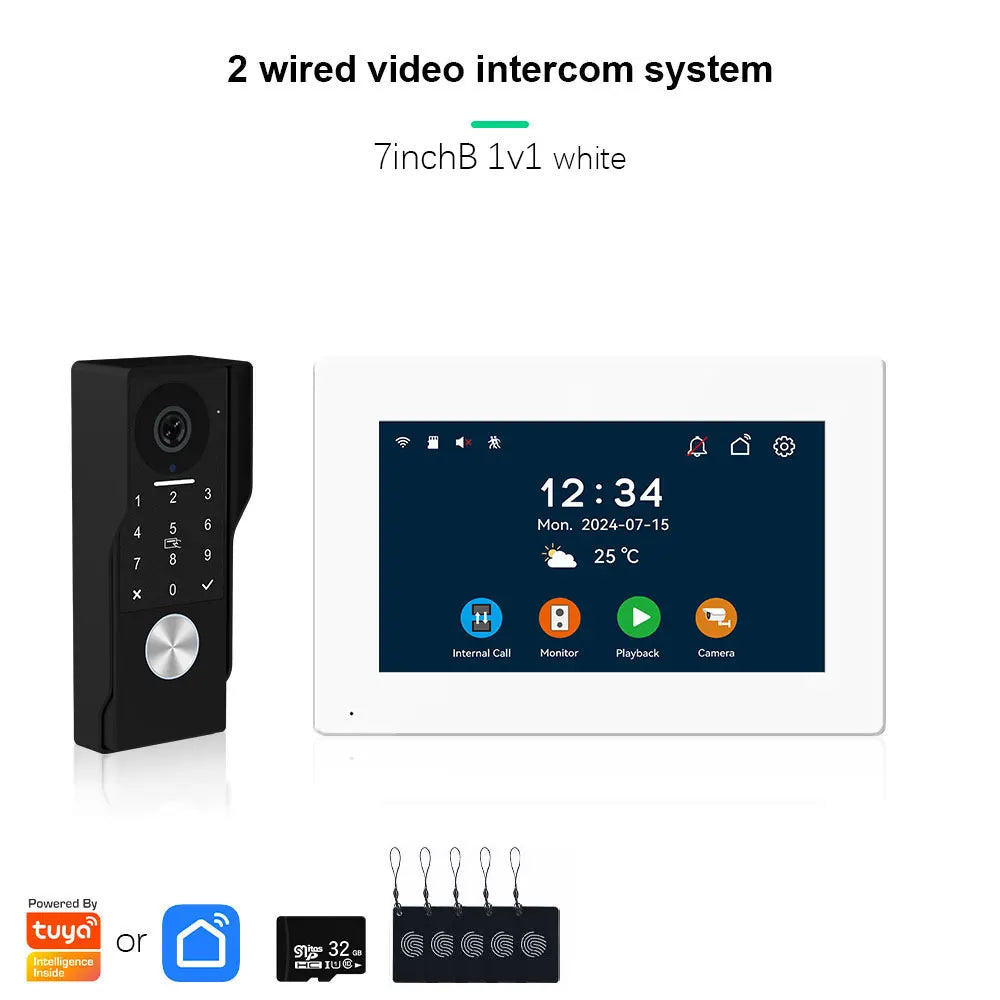

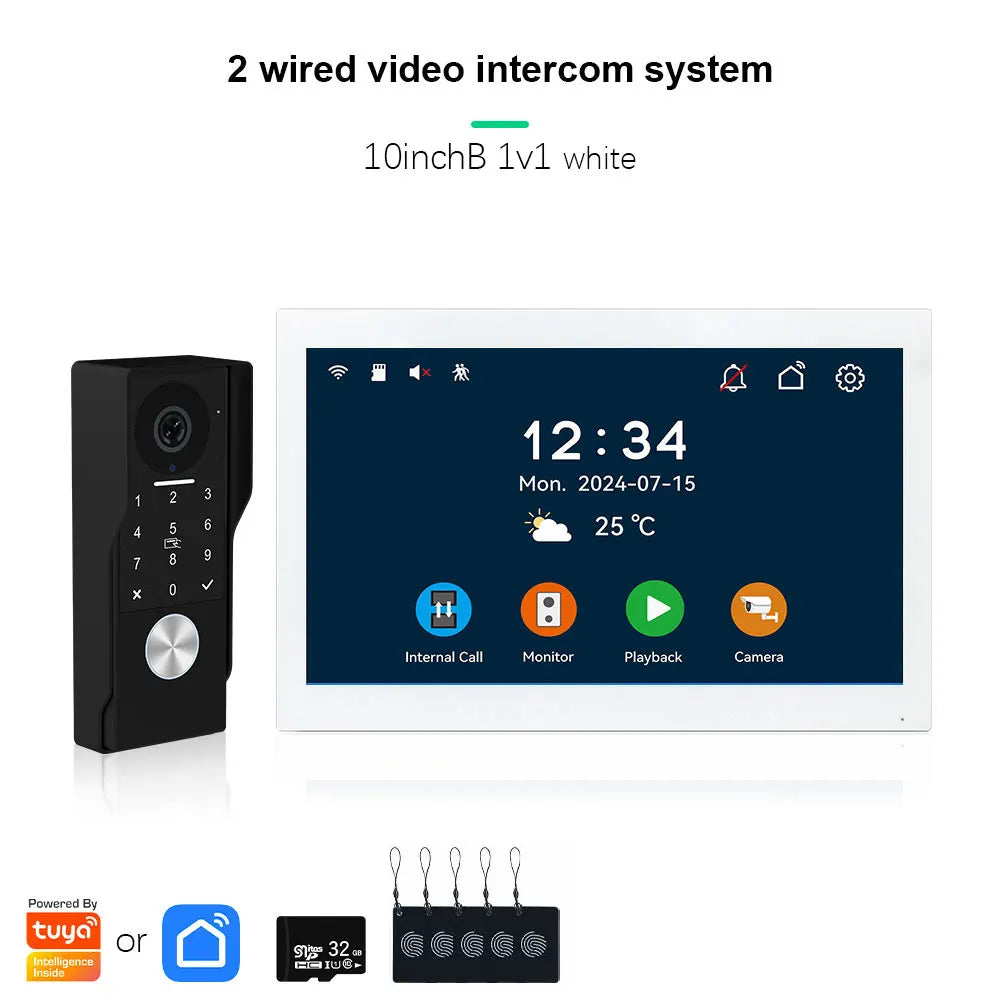

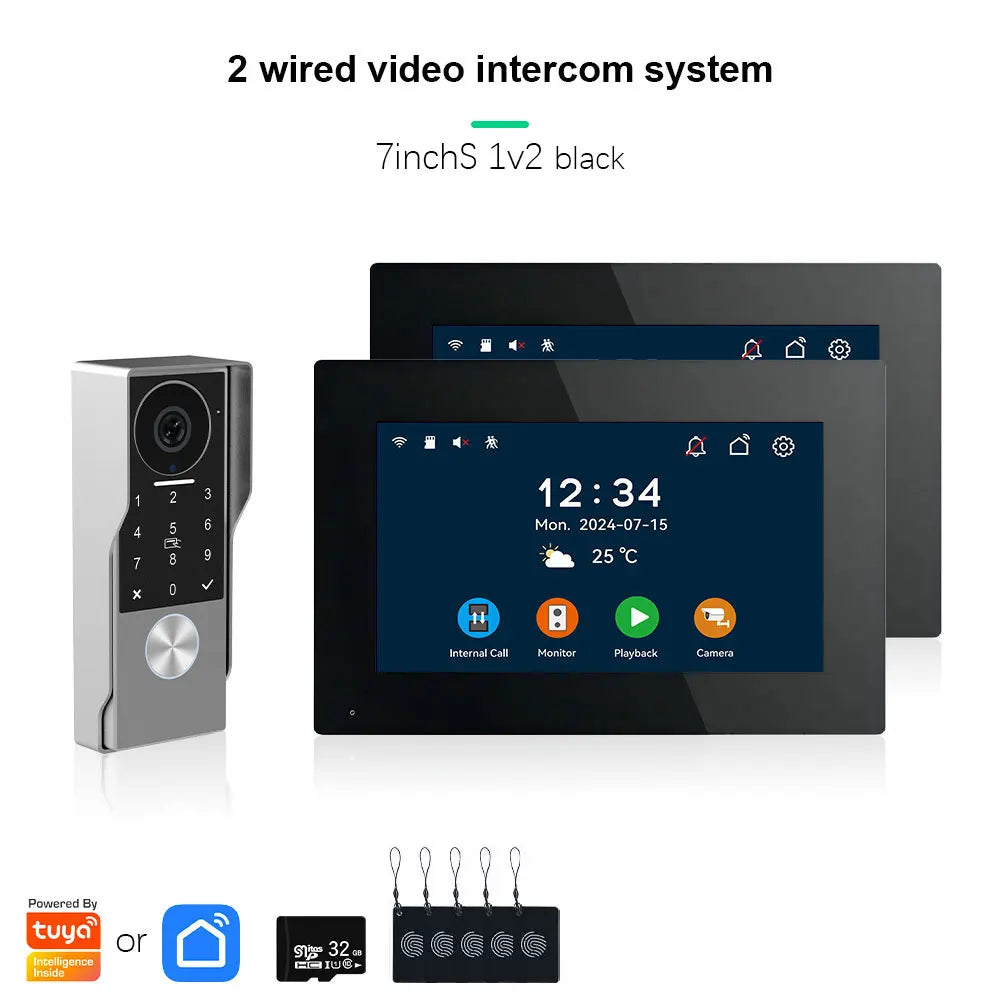

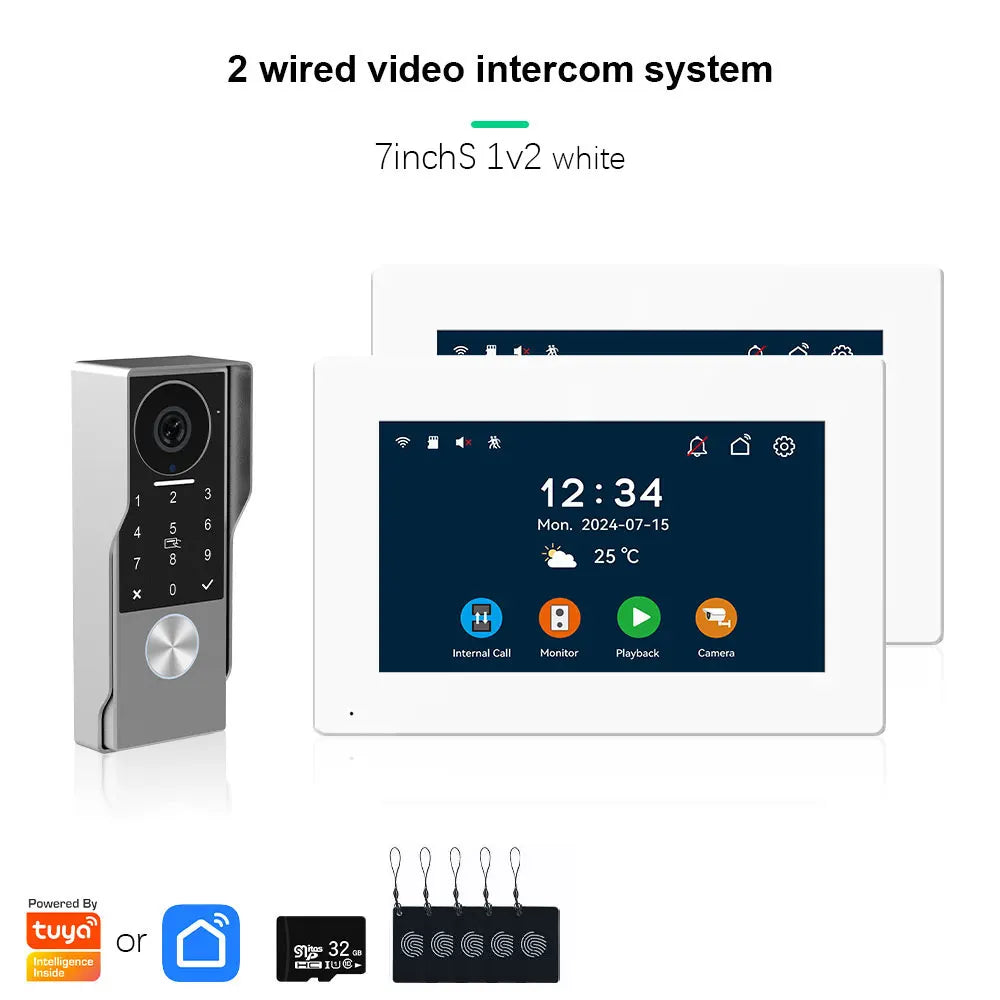

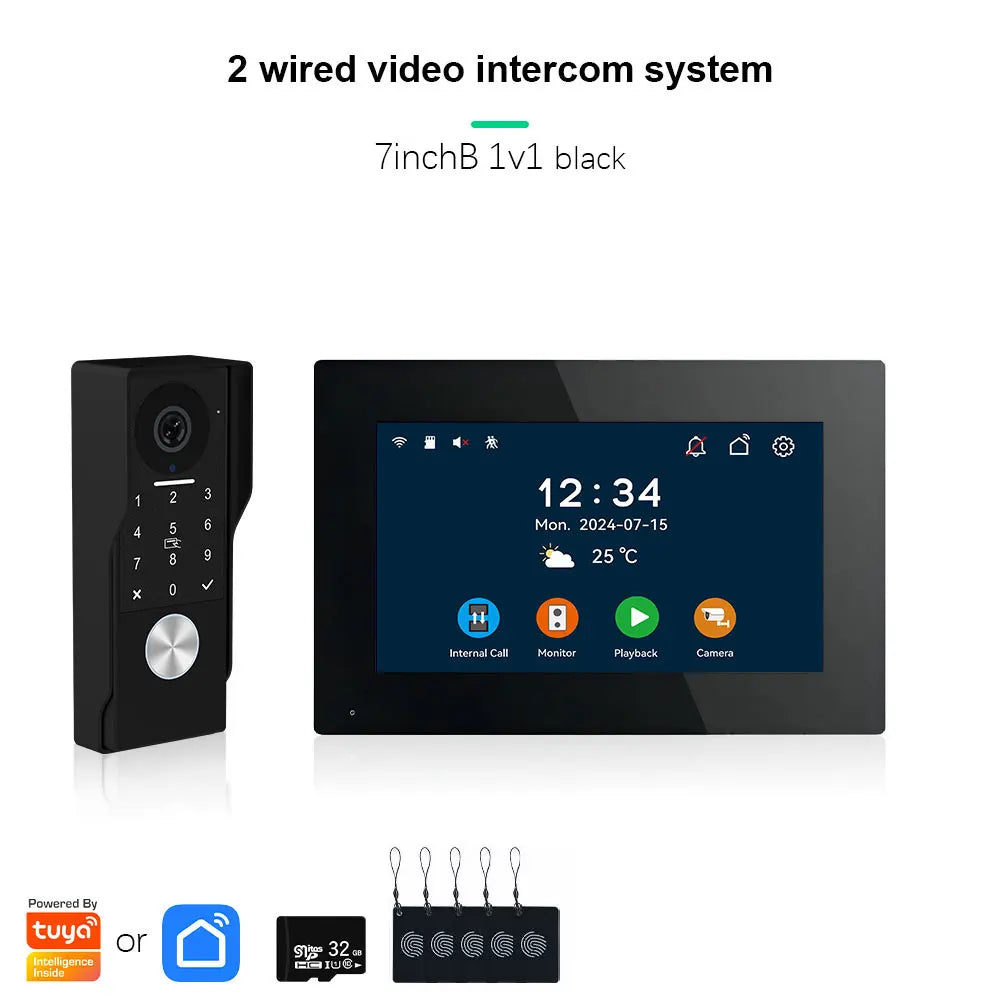

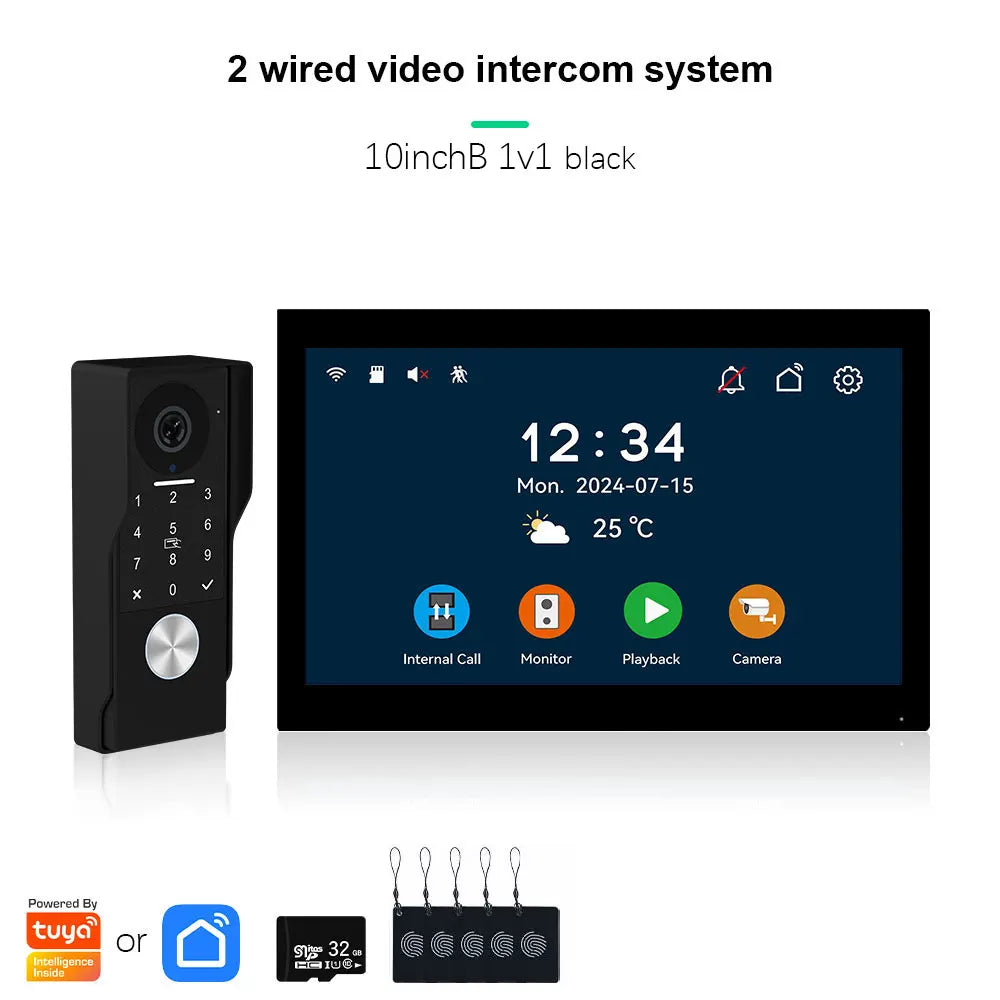

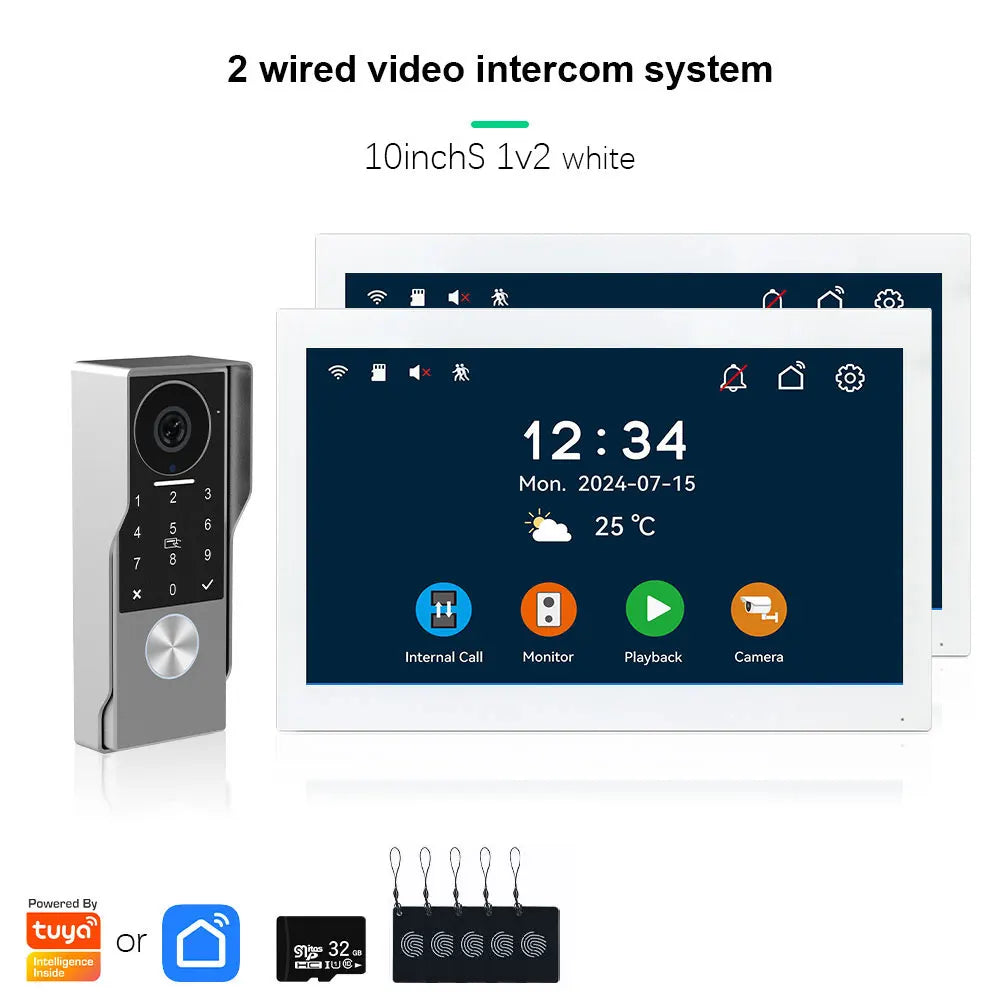

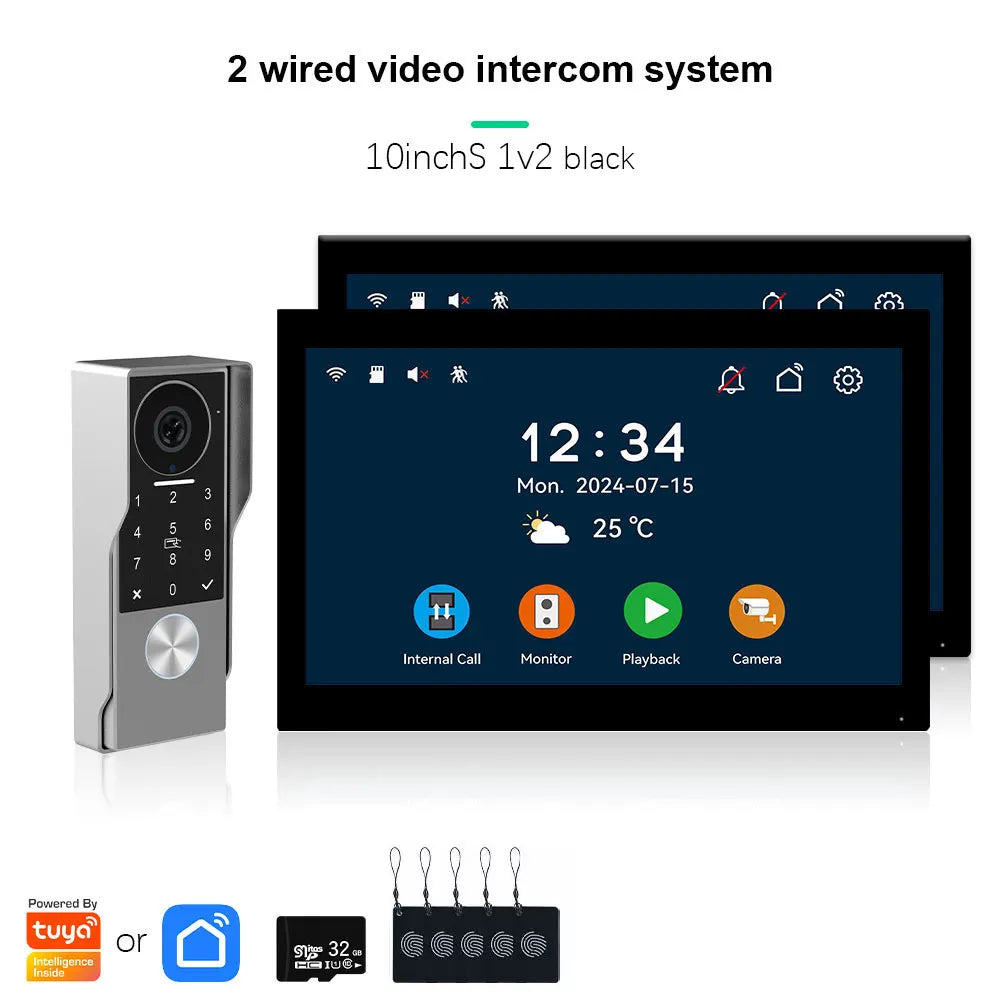

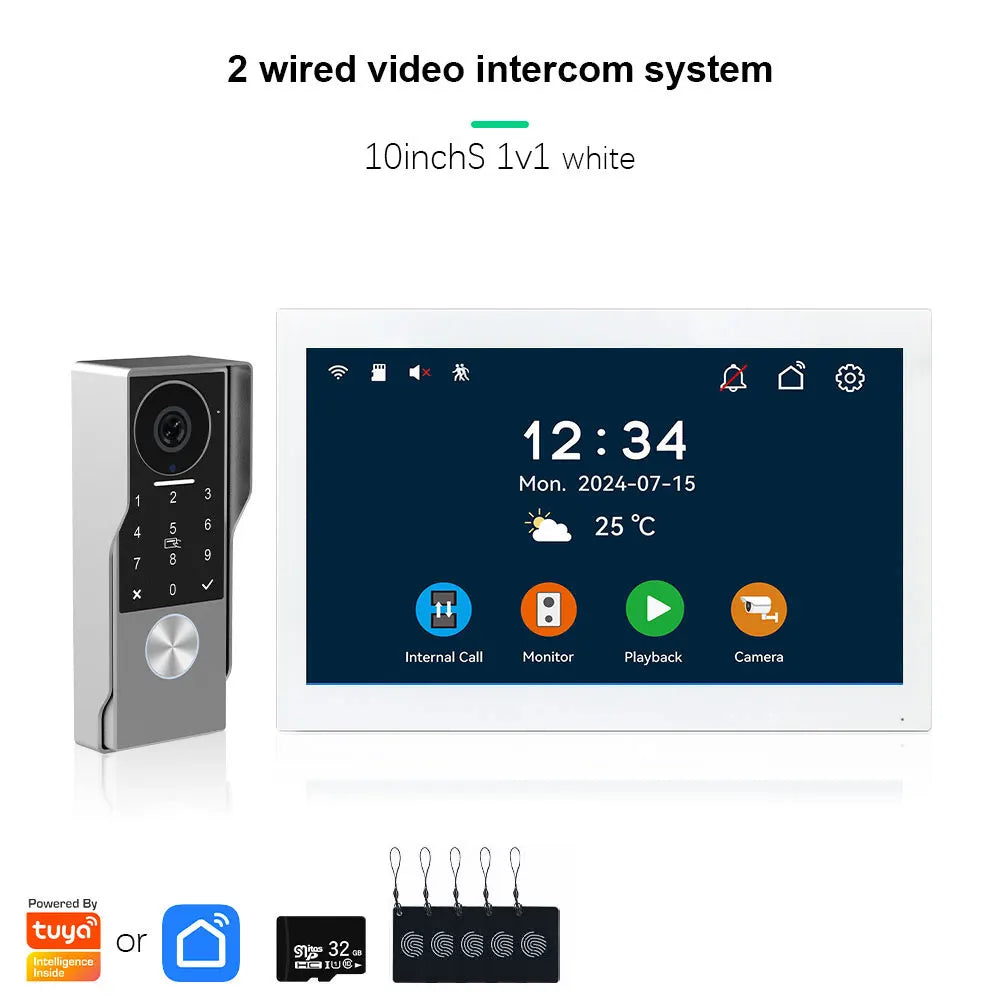

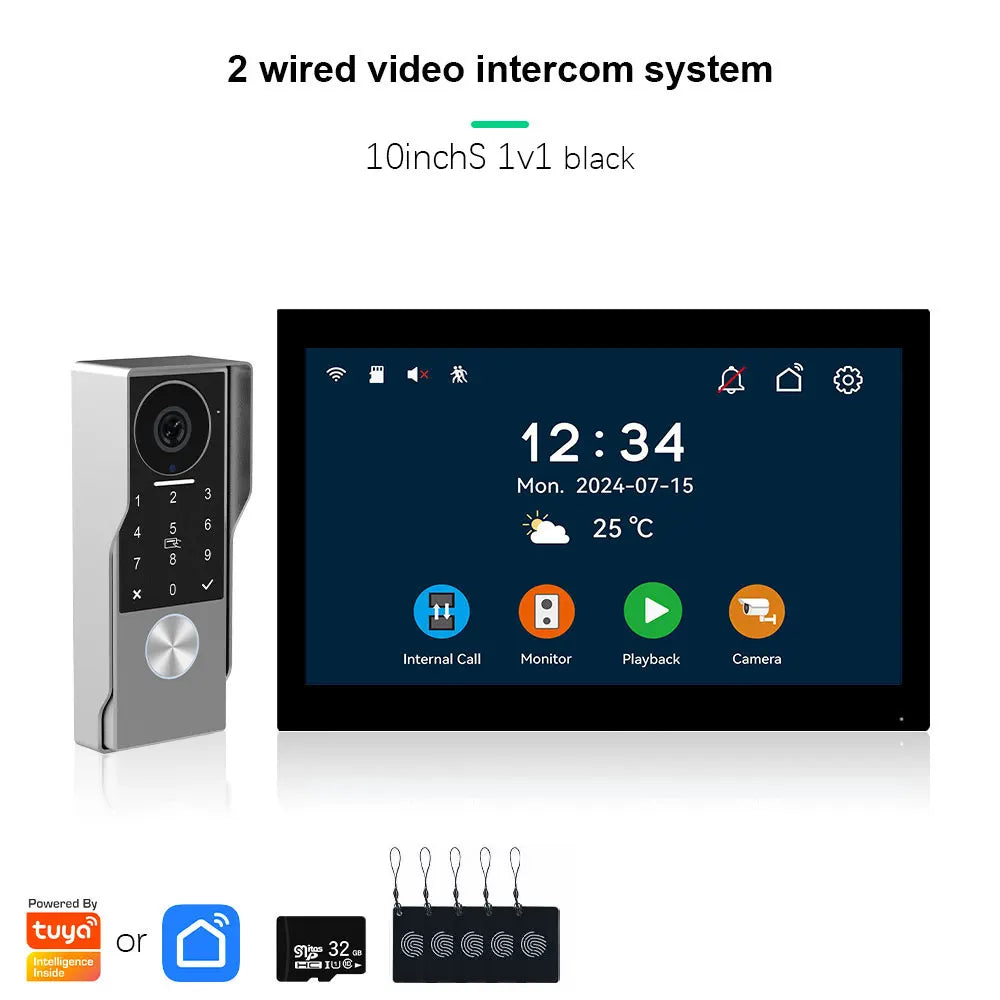

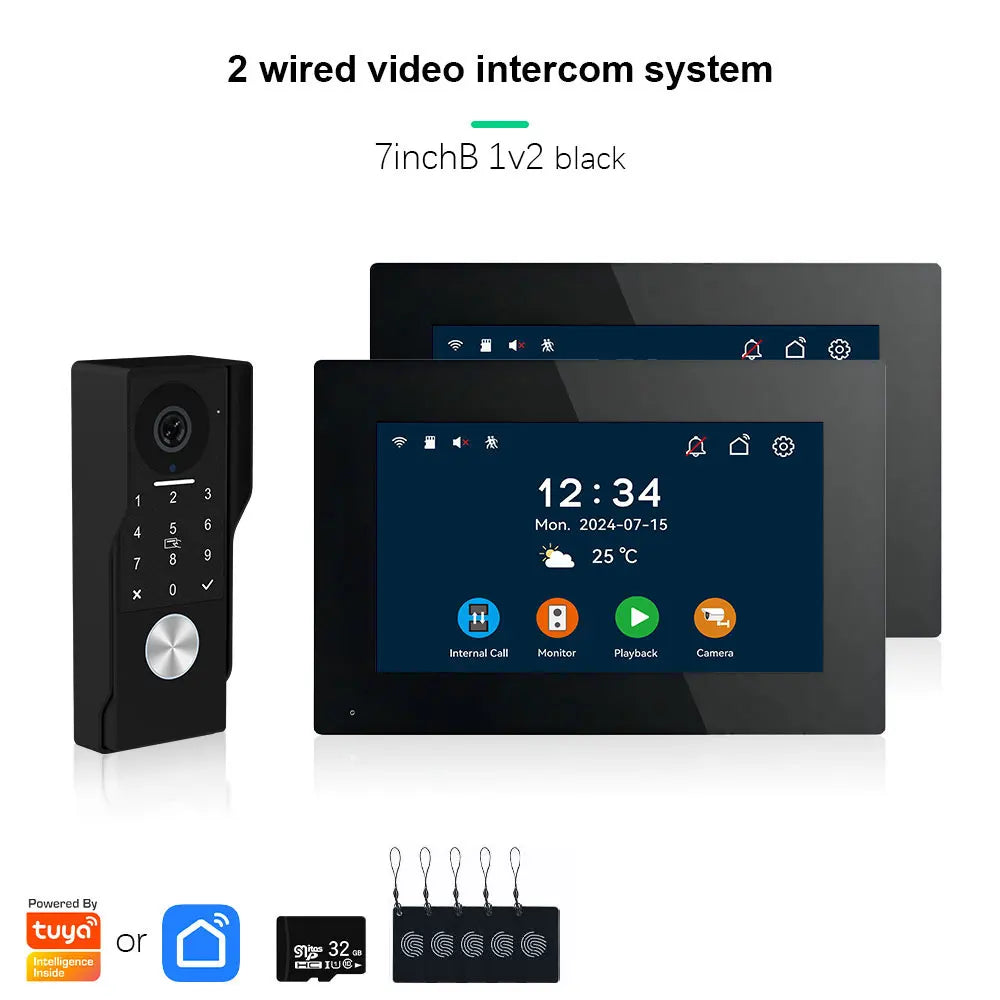

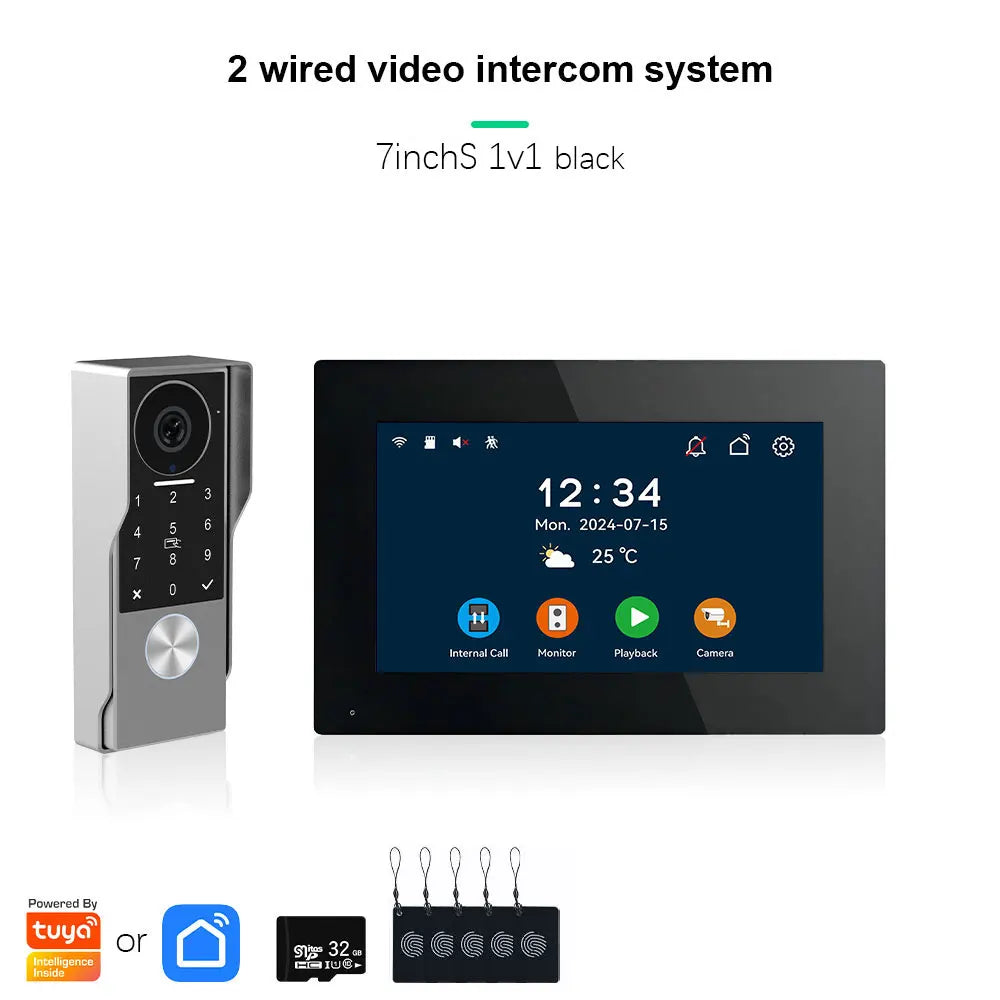

Powerful & Versatile 2-Wire Video Intercom System: Secure Access for Complex Properties

Seamless Smart Home Integration (TUYA): Fully supports TUYA Smart, enabling effortless integration with your existing smart home ecosystem. Control access, view live feeds, and manage settings remotely via the intuitive TUYA app.

Monitor

- 7” or 10.1” 1024 x 600px IPS touch screen

- Micro SD card class 10 up to 512GB

- 2.4 GHz WiFi IEEE 8111 b/g/n

- Current consumption: 150mA, Power consumption: 3.5W

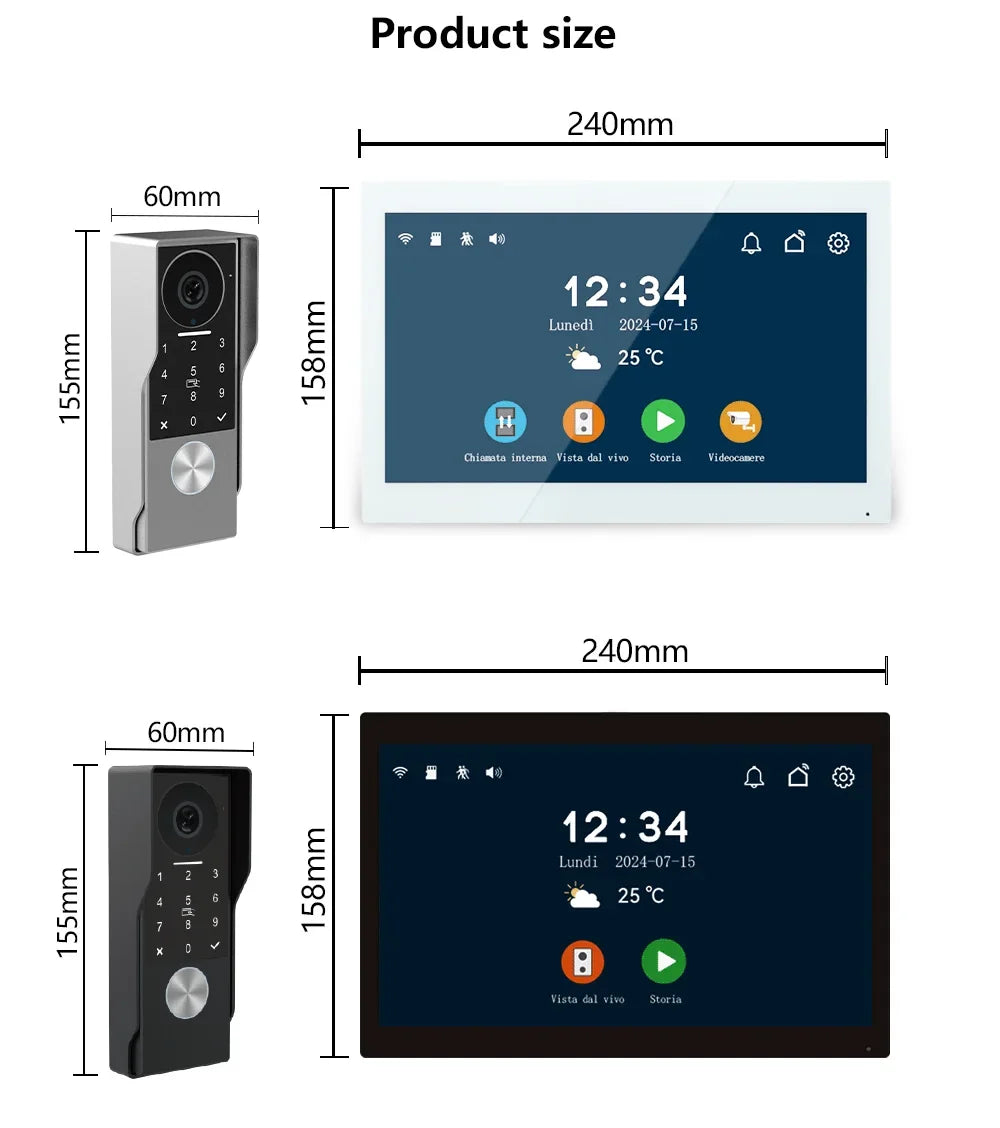

- 7inch monitor dimensions: 119 (h) x 188 (w) x 18.5 (d) mm

- 10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm

- Video decoding: H.264

- Take photo or video, twin controls for lock and gate, human detection, weather

- Monitor can talk to another monitor

- Video recording or take photo when human detection or call

Intercom panel

- CMOS colour sensor 2Mega pixels

- Viewing angle: Horizontal ~130°/ Diagonal ~165°

- Current consumption: 220mA，Power consumption: 5.5W

- IR CUT no color deviation (4 IR LEDs)

- Camera with wide dynamic range

- Camera distortion correction to avoid video stretching and bending

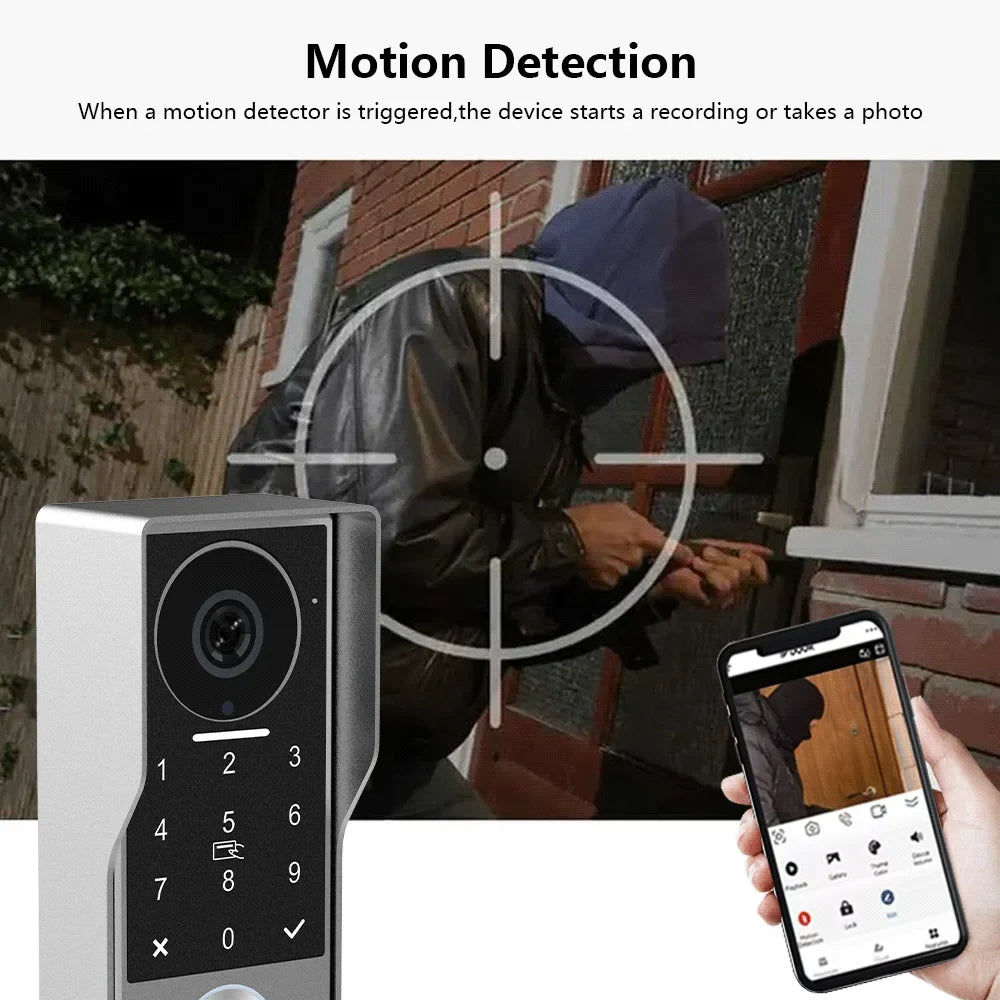

- Human detection and setting Motion zone

- RFID: 13.56MHz - 100 badges max.

- Operating temperature: -30°C / +70°C

- Dimensions: 147(h) x 55 (w) x 22(d) or 36(d) with weather-proof shield

Connect

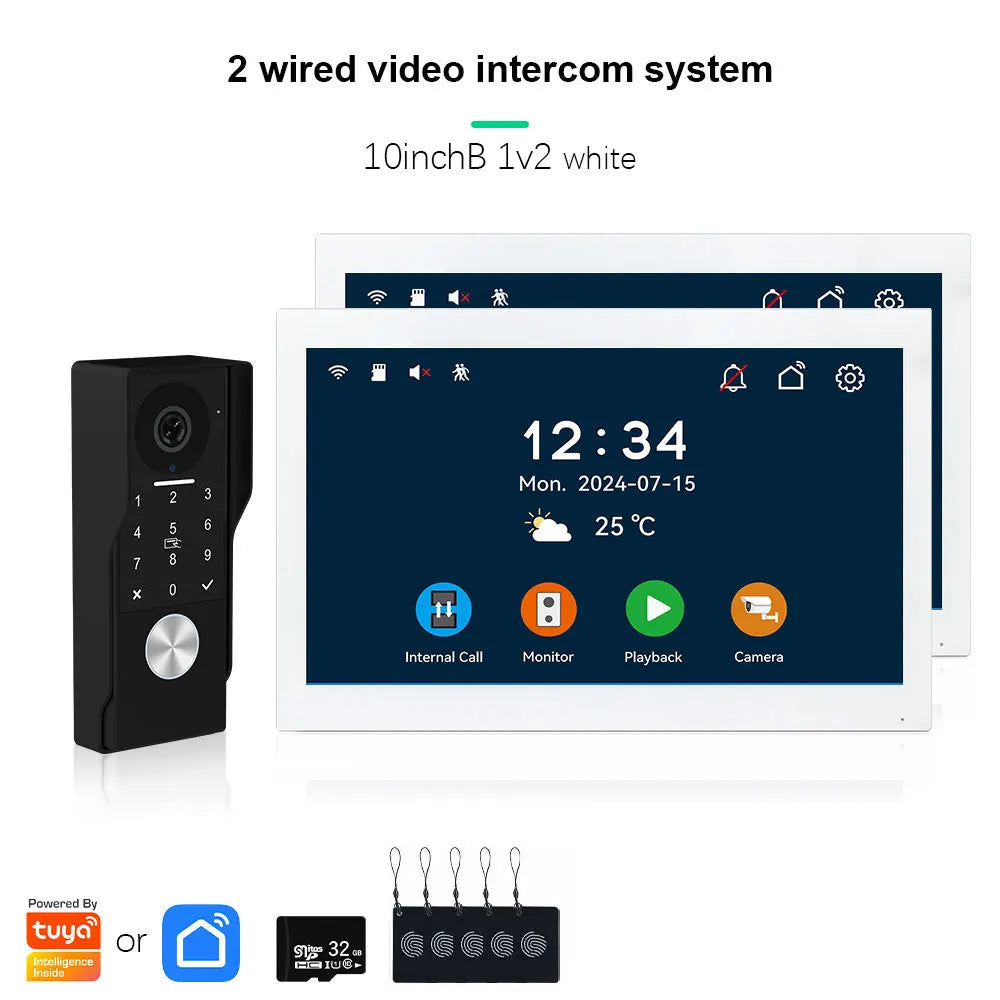

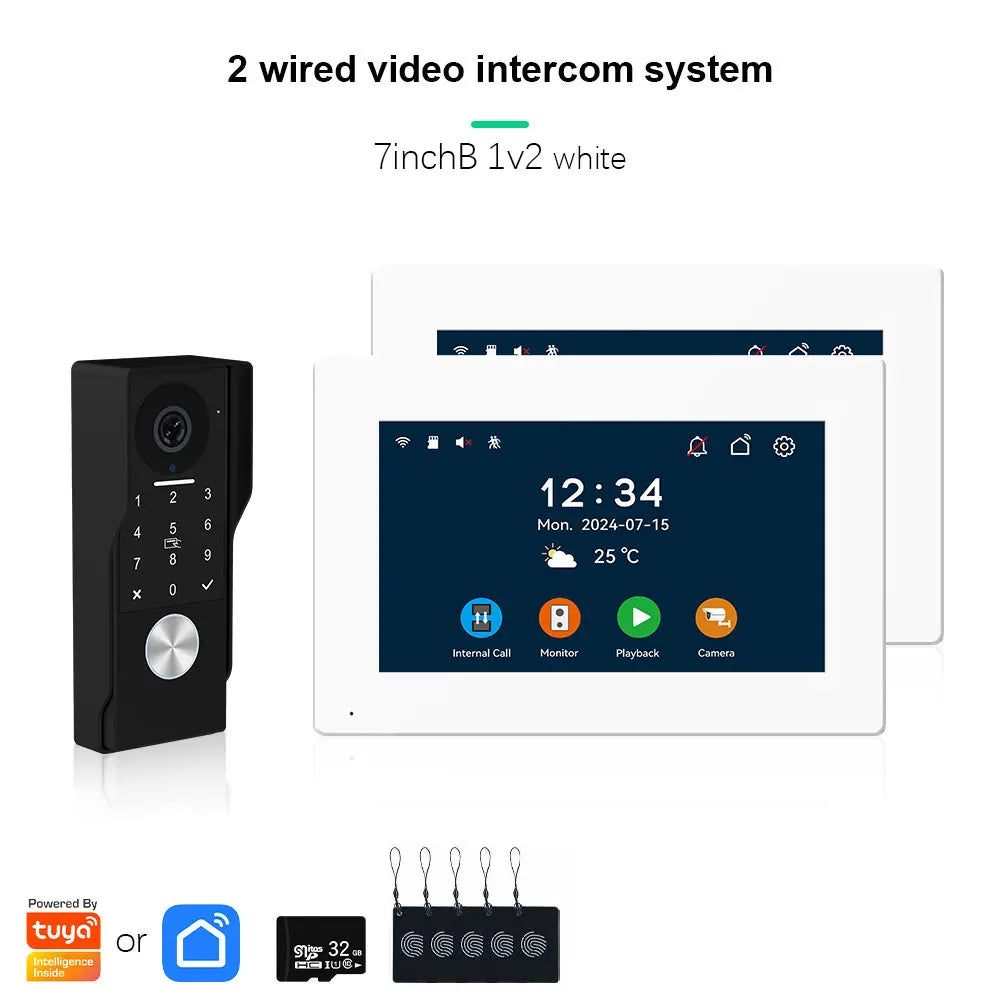

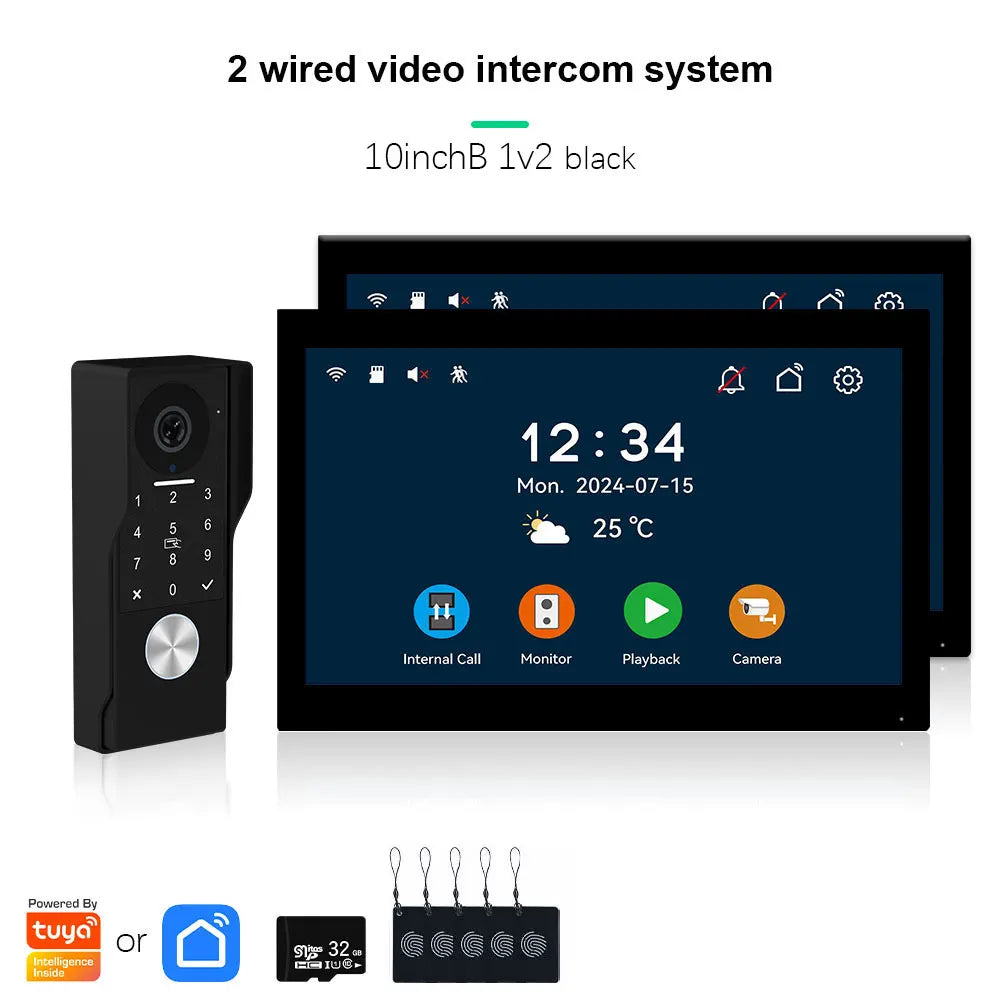

- 1 Intercom panel and 2 monitors share one power supply

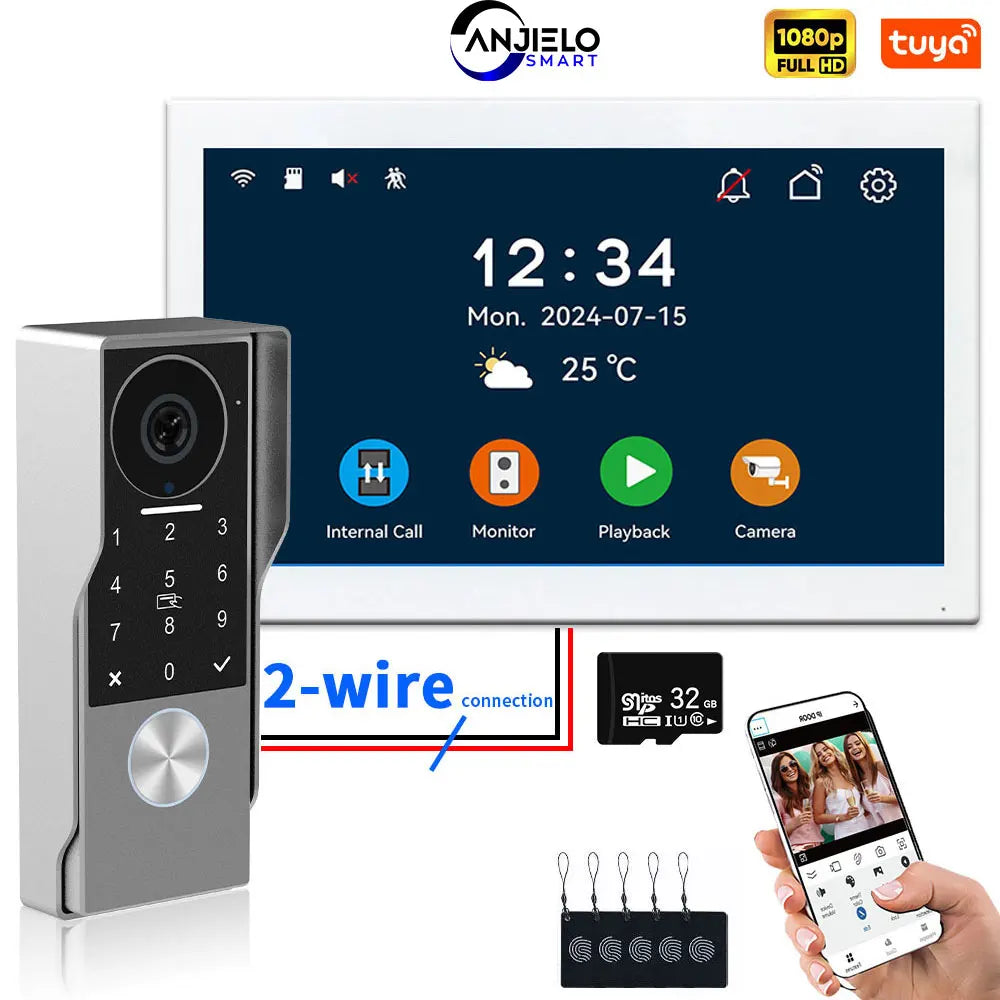

- 2 wires no polarity to conect intercom panel and monitors

- Connect up to 24 Onvif cameras in the same LAN(Supports integration with up to 24 IP cameras, creating a comprehensive surveillance network viewable directly through the intercom monitors or the TUYA app.)

APP

- Main monitor connects to "Tuya Smart" or "Smart Life" App

- 20 App users connect to the APP, users can talk to visitors anytime and anywhere,

take photo or video, monitor, unlock lock and gate, cloud storage

- Video recording or take photo when human detection or call

- Search "Tuya Smart" or "Smart Life" from APP store or Google Play

- Scan the QR code on the menu of monitor to download

Multi-Method Access Convenience: Offers flexible unlocking options

- IC Card Access: Grant secure entry using authorized contactless IC cards.

- PIN Code Entry: Utilize secure keypad codes for easy access without keys or cards.

Ideal For: Gated communities, apartment buildings with separate vehicle/pedestrian access, large homes with driveways, and commercial properties requiring robust access control and surveillance.
