Feature:

Indoor Unit:

It is have Surveillance ,Talkback,Unlocking,Ring music choice

Indoor intercom,Sound volume control, Brightness and Color Adjustment function

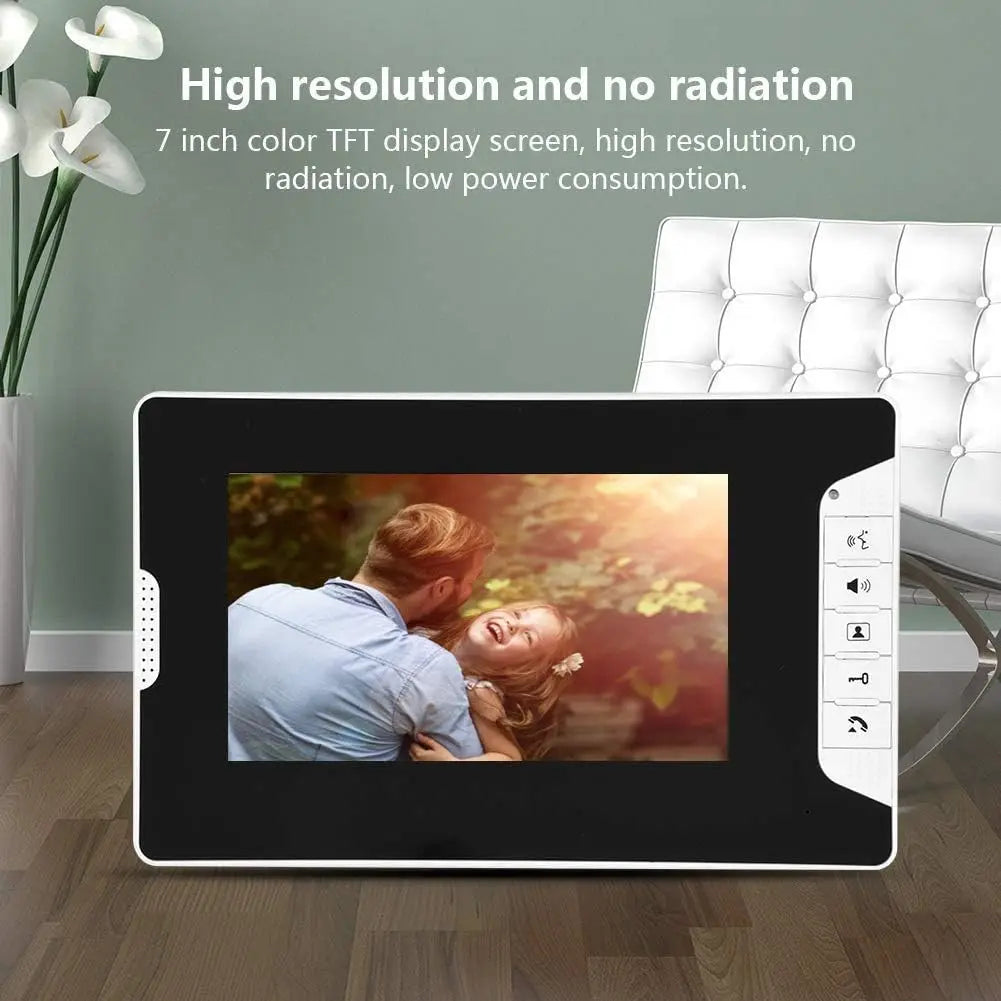

1.7Inch TFT LCD, nonradioactive, low power consumption, High definition widescreen image.

2. Hands-free intercom function

3. Monitoring functions.

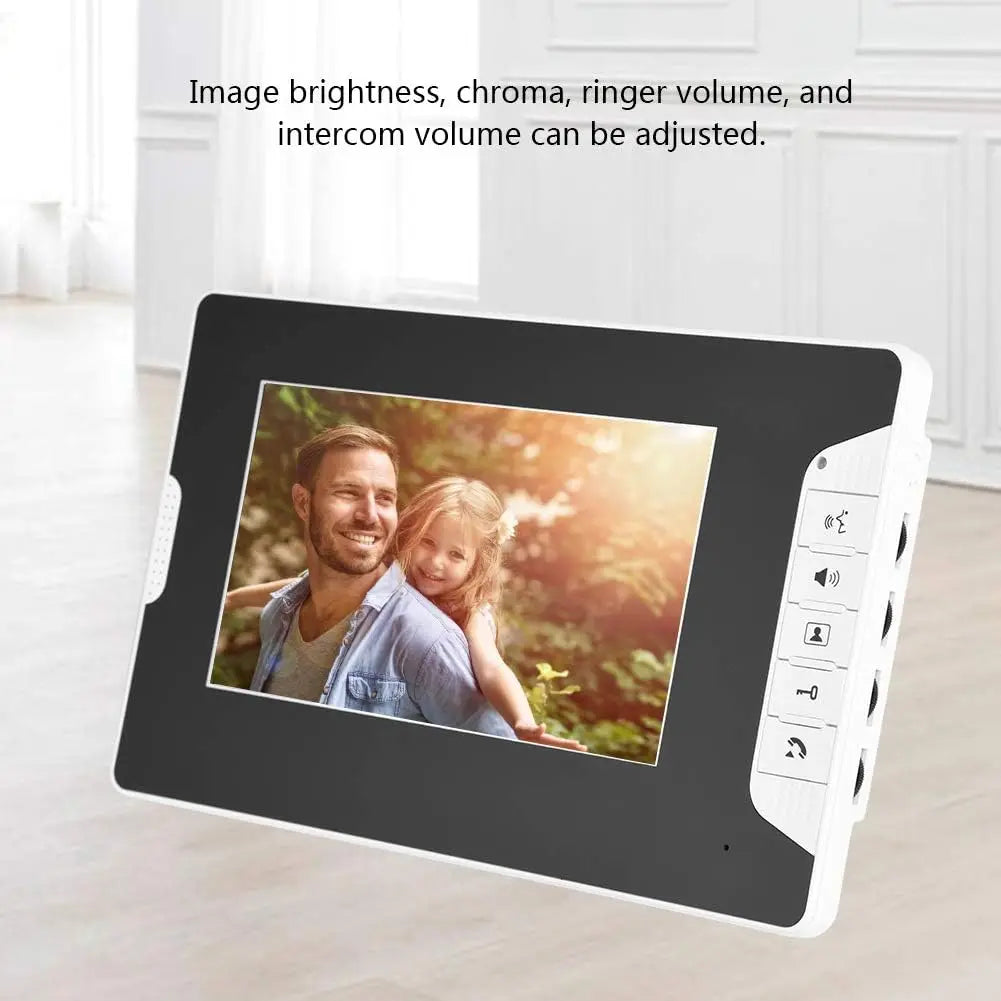

4. Image brightness, Chroma , Ring music choice, Sound volume control can be adjusted.

5.Ultra-thin aluminum panel ABS design.

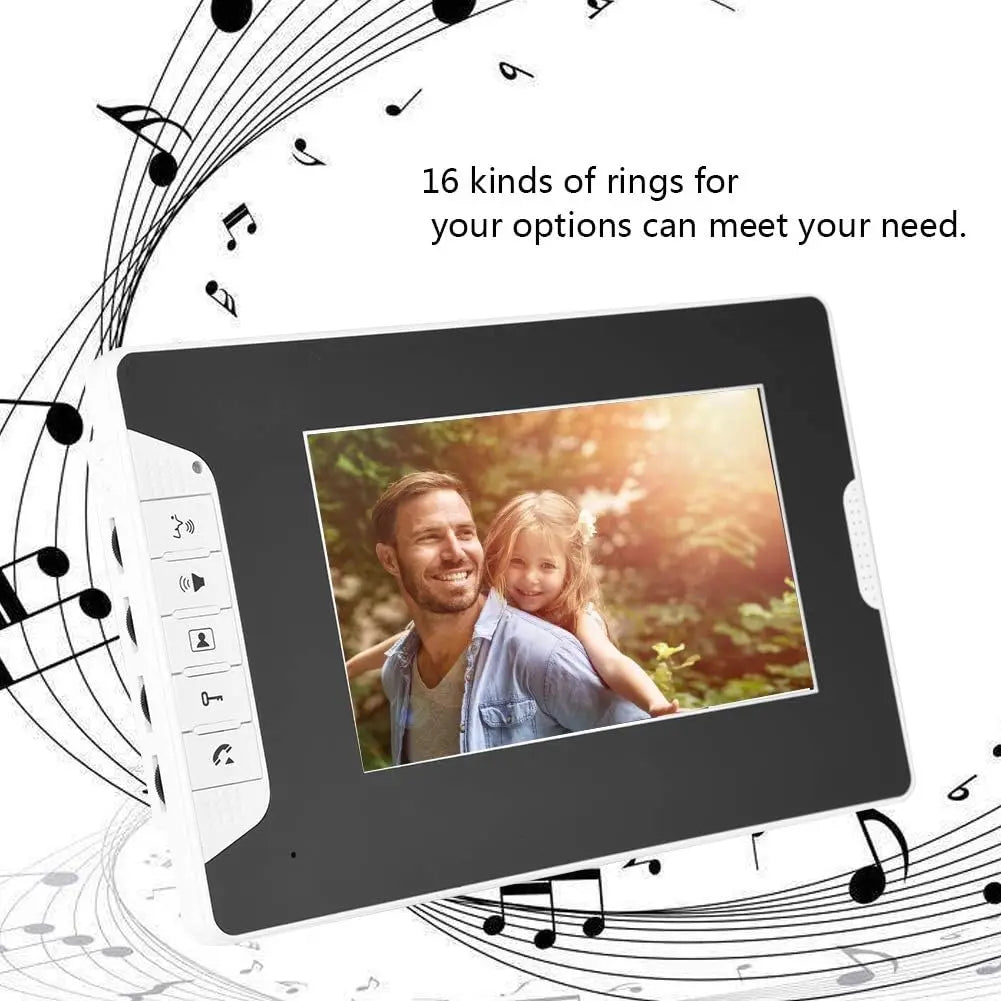

6.16 different polyphonic sound Ring music choice，will not always hear the monotone of Doorbell ring.

7.Hang a wall to install

8.Indoor Size :25*15*2CM

9.Connection mode:（outdoor unit to indoor unit Used to 4 Core cable).

10.power supply mode: DC15V/1.2A

11.two indoor unit can one to one Talkback

Outdoor unit:

1.Antioxidant Acrylic plate and wear-resisting ABS shell.

2.2099 COMS HD photosensitive Chip,700TVL ,3.6mm Lens, angle of view 92 degrees.

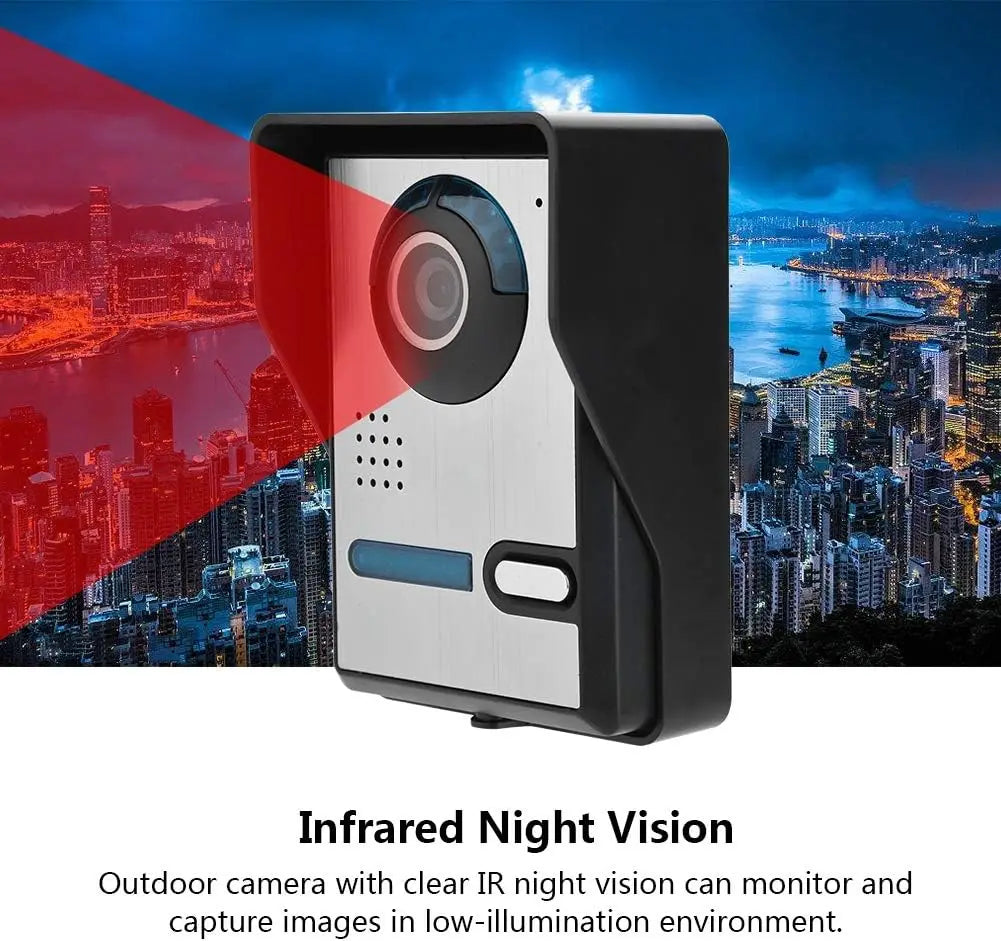

3. Infrared night vision function (5 PCS IR Led + 1 PCS light resistance).

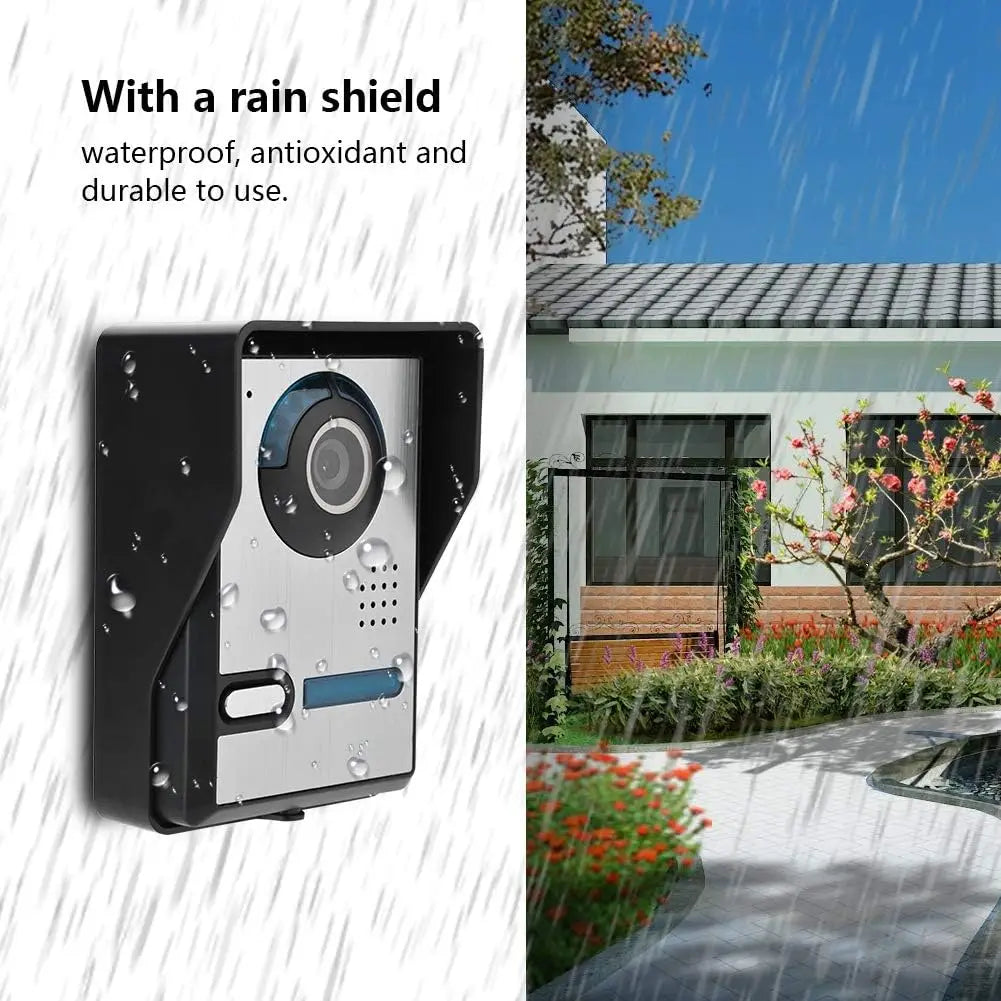

4.IP55 Water proof cover.

5.It is have Power to unlock, Power lock,Exit Button unlock Function

6.Hang a wall to install.

7.outdoor unit size: 138*98*40MM.

8.Connection mode:4 Core cable

9.power supply mode: DC15V/1.2A

Performance parameters: 1.Power supply：AC100-240V/ DC15V 1.2A/50/60HZ

2.Machine current：less than 800mA

3.Call delay time：120S±10%

4.Surveillance delay time：60S±10%

5.camera sensor ：700TVL

6.Lens: 3.6mm Lens, angle of view 92 degrees

Package List:

1.7 inch Color TFT LCD Indoor unit *1

2.Outdoor unit *1

3.Connection cable *1

4.Ac Power supply *1

5.Manual *1

6.Screw package*1

7.2-Core unlock cable*1

8.4-Core Cable*1
